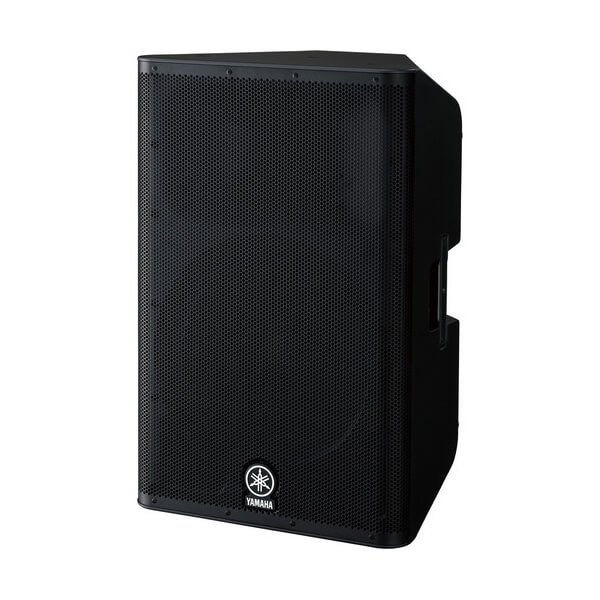

YAMAHA DXR15 15” 1100W Active Loudspeaker
Features:
Yamaha DXR15 1100W 15″ Powered Speaker
ลำโพงแบบมีกำลังขยายในตัว YAMAHA DXR15 เป็นตู้ลำโพง 2 ทาง ขนาดดอกลำโพง 15 นิ้ว LF driver, เสียงแหลม 1.4 นิ้ว Diaphragm 1 นิ้ว throat compression driver, Magnet:Ferrite, มีกำลังขับ 1100 วัตต์ (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) Class-D Amplifiers, ตอบสนองความถี่ 49Hz to 20kHz
The DXR15 achieves class-leading SPLs and full bandwidth performance by combining a powerful Class-D amplifier with a high-power woofer and Yamaha’s cutting edge technologies. Throw in some D-CONTOUR and you’ll feel like you’re using a subwoofer.
Features:
- High-powered portable loudspeaker with multi-use flexibility
- 15″ speaker, powered by 700W in a 2-way design
- Built-in 3-channel mixer lets you connect microphones or line-level sources directly without an entire PA system
- Built-in DSP for phase optimization and transparent dynamic control
- ABS cabinet is durable with a low-resonance design for maximum sound quality
Specifications
| General specifications | DXR15 | |
| Speaker type | 15″ 2-way, Bi-amp powered speaker, Bass-reflex type | |
| Frequency range | -10dB | 49Hz – 20kHz |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | Diameter:15″ cone, Voice Coil:2.5″, Magnet:Ferrite |
| HF | Diaphragm:1.4″, Type: 1″ throat compression driver, Magnet:Ferrite | |
| Crossover | FIR-X tuning™ (linear phase FIR filter) | |
| Output power | Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) | |
| Maximum output level (1m; on axis) | 133dB SPL | |
| I/O connectors | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1 ), LINK OUT: XLR x 1 | |
| Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF | |
| Power requirements | 100V – 240V, 50Hz/60Hz | |
| Power consumption | 110W | |
| Flying and mounting hardware | Top x2, Rear x1 (Fits for M10 x 18mm eyebolts) | |
| Pole socket | 35mm with 2-way features (0 or 7 degrees) | |
| Dimensions | W | 445mm (17 4/8″) |
| H | 700mm (27 4/8″) | |
| D | 380mm (15″) | |
| Net weight | 22.5kg (49.6lbs) | |
| Accessories | UB-DXR15 (U-barcket) | |
| Others | Material: ABS (Matte Finish, Black) |
