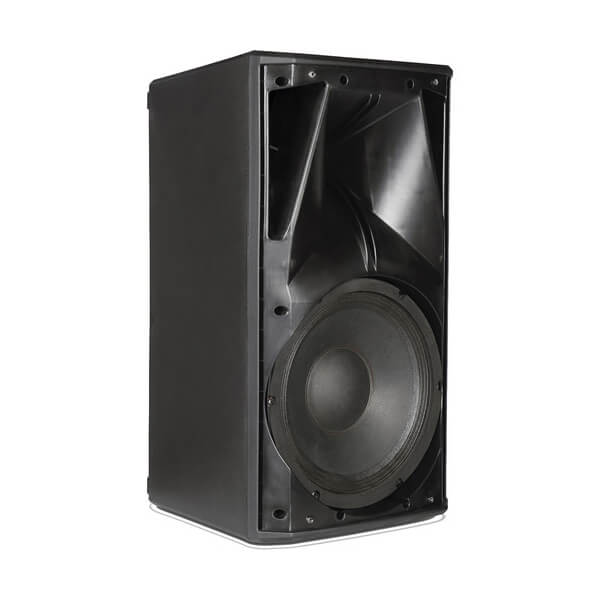

dB Technologies Opera 10 10” 1200W Active Speaker

Features:

  • Fully networkable with RDNET via Aurora Net
  • Digipro G3 Amp technology
  • 1800 W
  • Striking SPL up to 133 dB
  • Advanced processing with FIR filters for improved intelligibility
  • Neodymium Woofer
  • Asymmetrical horn design for optimized coverage
  • Professional grade Powerconn IN/LINK connectors

Specifications

GENERAL

  •  Type:2-way active speaker

ACOUSTICAL SPECIFICATIONS

  •  Frequency response [-10dB]:58 – 20k Hz (OPERA10) / 52 – 20k Hz (OPERA12) / 50 – 20k Hz (OPERA15)
  •  Frequency response [-3dB]:70 – 19.6k Hz (OPERA10) / 67 – 19.6k Hz (OPERA12) / 56 – 19.6k Hz (OPERA15)
  •  Max SPL:128 dB (OPERA10) / 129 dB (OPERA12) / 130 dB (OPERA15)
  •  HF voice coil:1.4”
  •  HF compression driver (output):1”
  •  LF:10” (OPERA10) / 12” (OPERA12) / 15” (OPERA15)
  •  LF Voice coil:2”
  •  Crossover frequency (24 dB/oct):2000 Hz
  •  Directivity:Asymmetrical vertical – Differentiated horizontal
  •  Coverage (HxV):85°- 120° x 80° (+25°/-60°)

AMPLIFIER

  •  Type:AMP SMPS
  •  Amplification class:Class D
  •  Power supply:1 x VDE
  •  RMS amplifier power:600 W
  •  Peak power:1200 W

PROCESSOR

  •  Internal controller:56-bit DSP
  •  A/D D/A converter:24 bit/48 kHz
  •  Limiter:Peak, RMS, Thermal

INPUTS

  •  Inputs:1x balanced/unbalanced Combo (XLR/Jack)
  •  Outputs:1x XLR link OUT

USER INTERFACE

  •  Controls:Level control, ground lift switch, 8-position DSP preset rotary switch

POWER SUPPLY SPECIFICATIONS

  •  Draw at 1/8 of full power in average
  •  use conditions (*):0,92 A (230 V) – 1,65 A (115 V)
  •  Draw at 1/3 of full power in
  •  maximum use conditions (**):2,25 A (230 V) – 4,05 A (115 V)
  •  Draw with speaker turned on without
  •  signal (idle):14 W
  •  Inrush current:14,07 A

DIMENSIONS

  •  Material: Reinforced PP polypropylene
  • Grille:Full metal grille (CNC)
  • Provisions for fly bar:Yes
  • Handles:2 (on the top, on the side)
  • Pole mount:Yes, 36 mm
  • Width:300 mm (OPERA10) 349 mm (OPERA12) 420 mm (OPERA15)
  • Height:552 mm (OPERA10) 642 mm (OPERA12) 722 mm (OPERA15)
  • Depth:301 mm (OPERA10) 350 mm (OPERA12) 419 mm (OPERA15)
  • Weight:12,3 kg (OPERA10) 14,3 kg (OPERA12) 18,3 kg (OPERA15)
